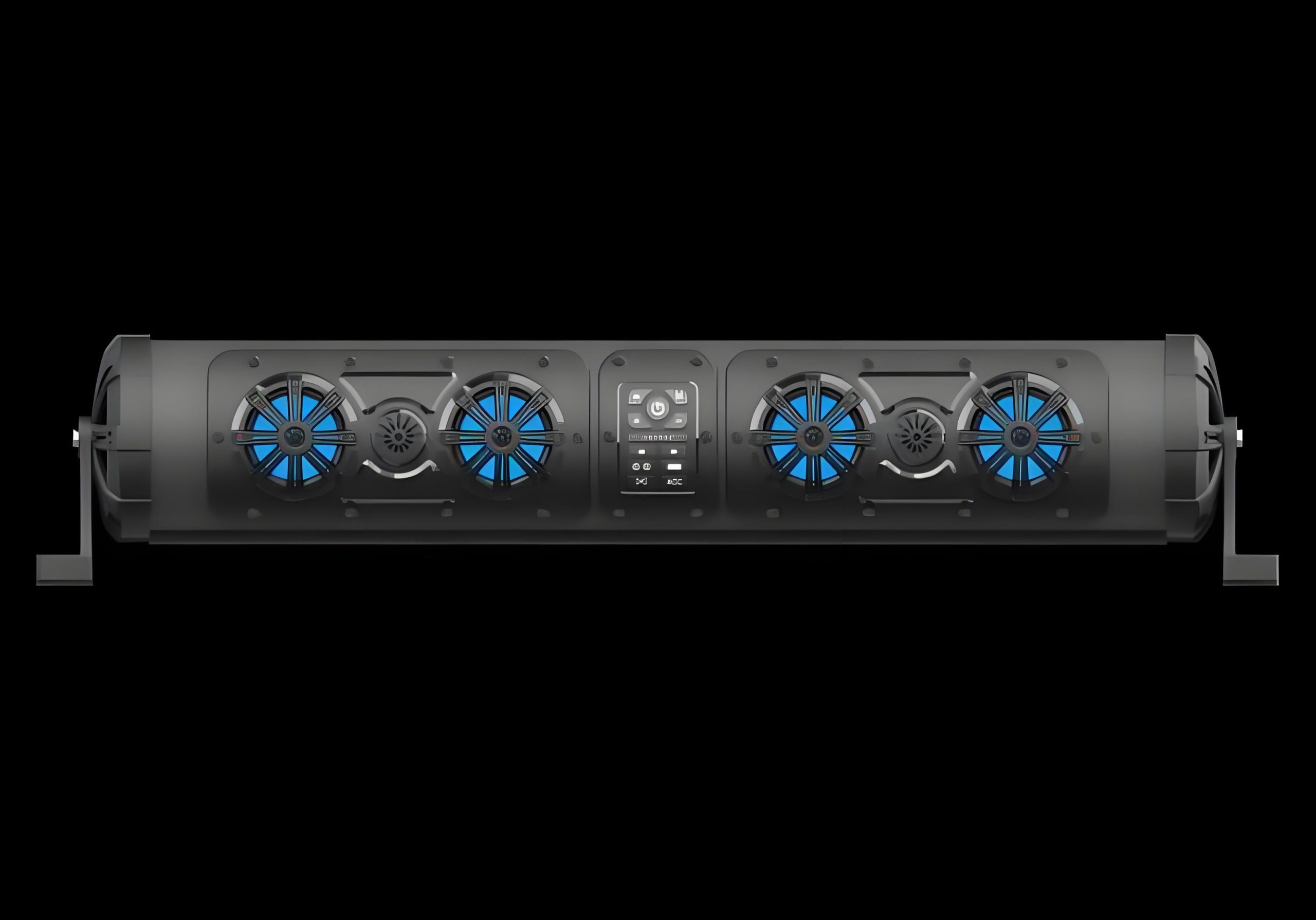

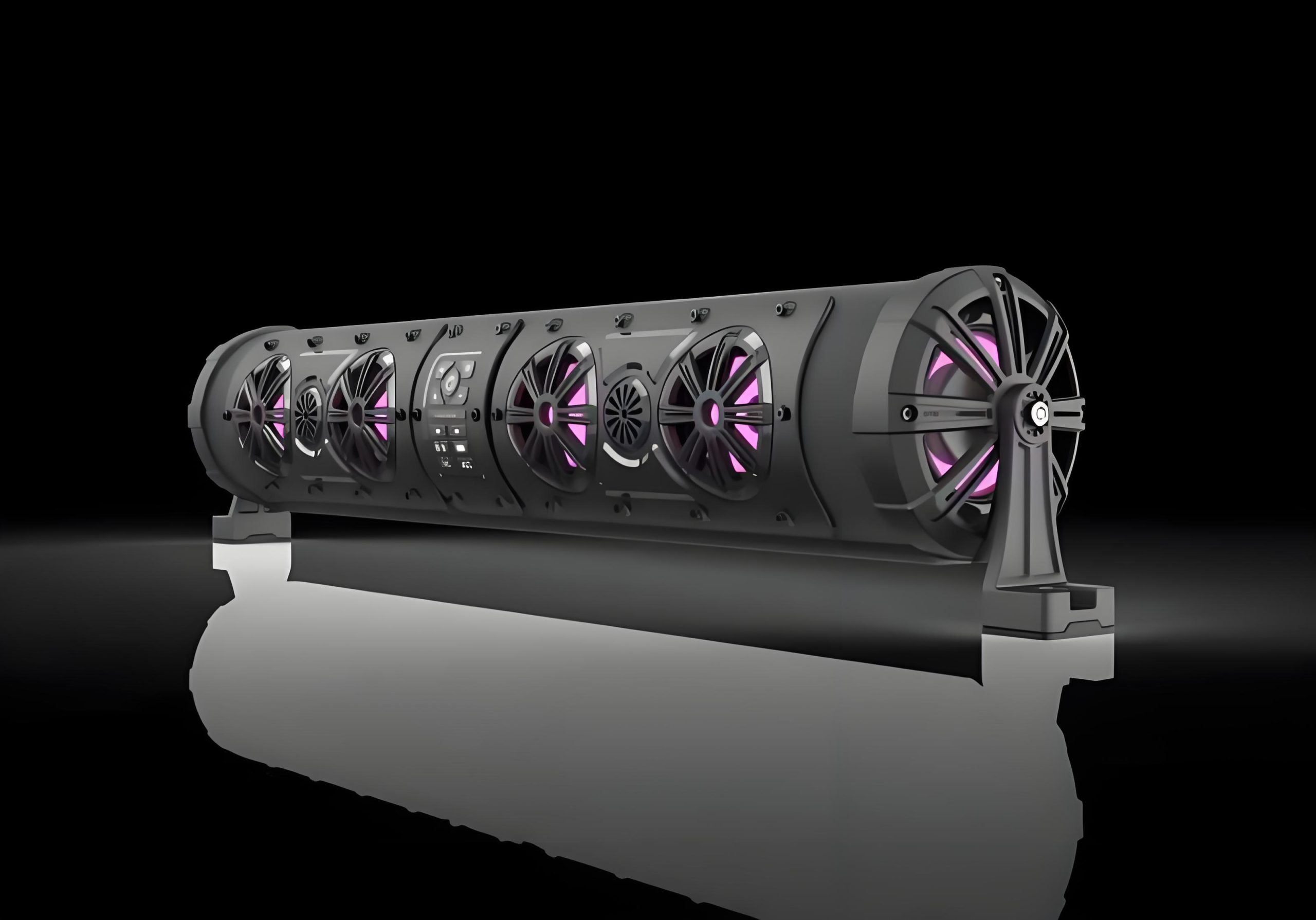

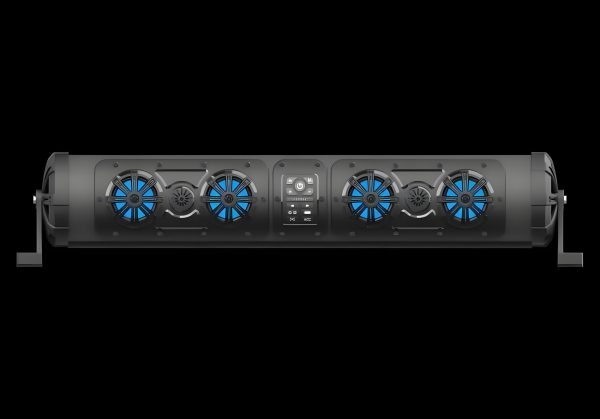

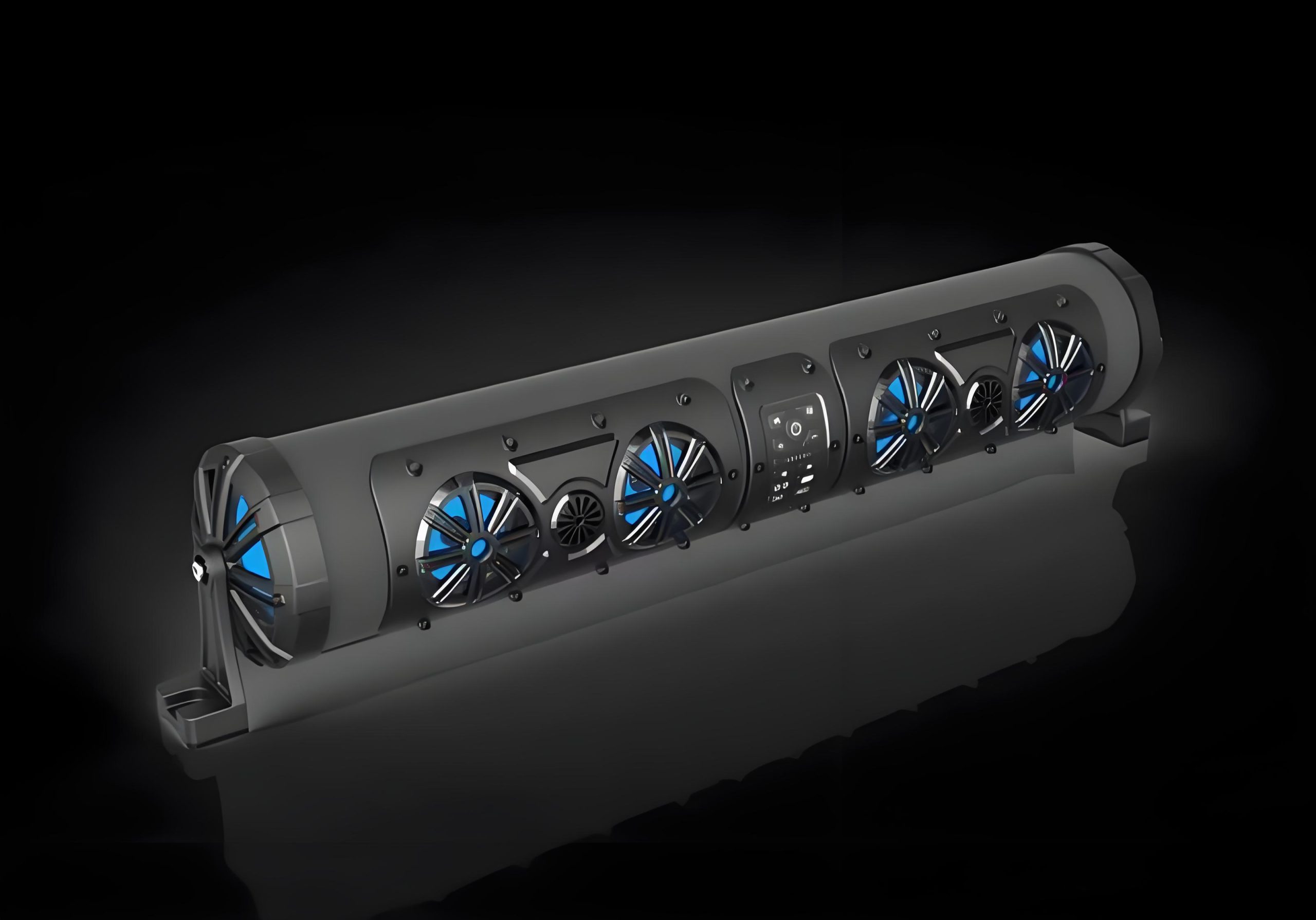

8 SPEAKER | IP66 WATERPROOF | BE USED FOR ATV/UTV/BOAT AND GOLF CARTS
OVERVIEW DIAGRAM
FEATURES
- Product Dimensions: Length: 27″ Width: 4.5″ Height: 4.5″
- Marine-grade speakers in IP66 Patent Pending enclosure providing waterproof and dustproof audio.
- 500 watts of peak power output.
- 8 marine grade speakers: 2 tweeters, 4 mid-range, and 2 side-mounted woofers.
- Two internal independently sealed cavities for true left and right stereo sound.
- Bluetooth 5.3 for long-range wireless connection to a smartphone. (Up to 100 ft / 30m)
- broadcast allows up to 100 soundbars to be connected together or connect to any speaker with the broadcast feature.
- Integrated on speaker controls: power, mode (Bluetooth/USB/Aux-in/broadcast), volume, skip FWD/Back.
- Built-in microphone for speakerphone calls.
- Multi-color LED backlights on all 8 speakers: Chose from Default gradient (sync to music), red, blue, green, purple, yellow,
white - Rear Facing red/white LED light bar can be turned on separately from the speaker LEDs.
- Waterproof 12V auxiliary power out connection cables to connect to your vehicle’s battery.
- Waterproof Aux In connector to play audio from a wired device.
- Waterproof 5V =1A USB charging port to give a boost to your phone or other devices or Play USB Stick Music .
- Mounting brackets and integrated threaded mounting holes allow for multiple mounting configurations.
- Long-range RF remote control, controls lights and audio functions.
- Input Voltage: 12VDC, 10A (requires connection to external DC battery for power)
- Bluetooth Name: CY-PB2701

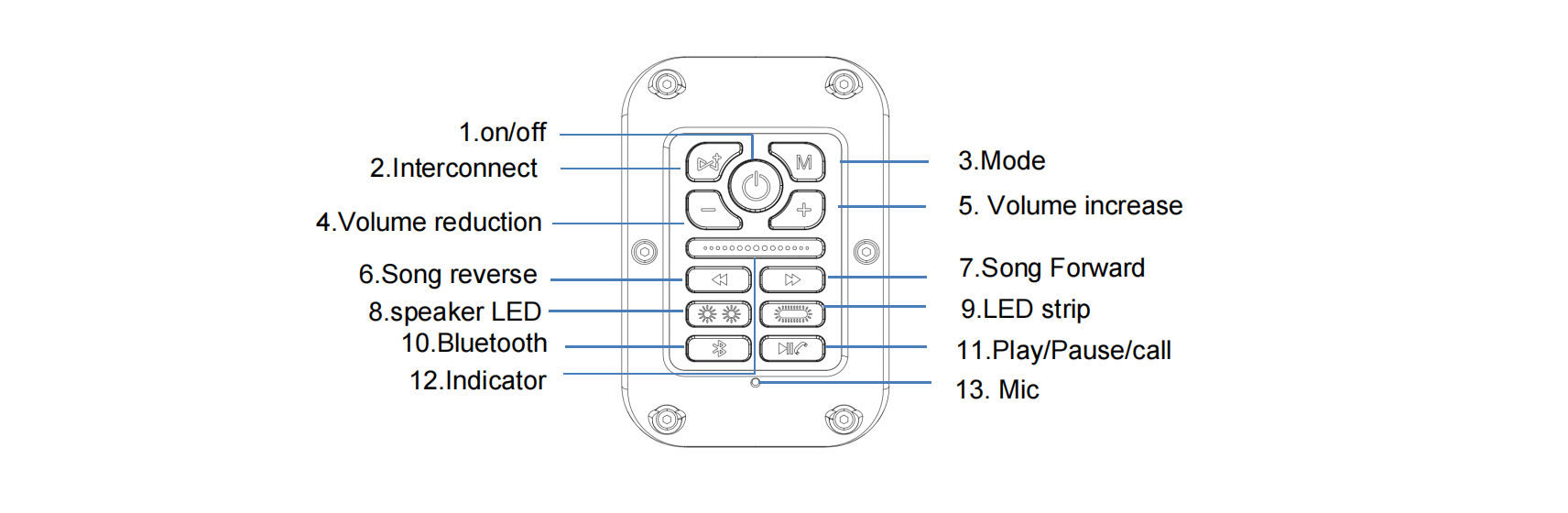

FUNCTION DESCRIPTION
- on/off button : long press to turn the power on/off
- Interconnect button: Long press to switch the host mode and slave mode respectively.
The blue light will be on the host, and the red light will be on the slave - Mode button: Click to switch between Bluetooth mode, LINEIN mode, USB mode
(only when USB is inserted) - Volume reduction button: Long press and click to reduce the volume
- Volume increase button: Long press and click to increase the volume, the maximum
volume of the prompt tone - Song reverse button： Click to play the previous song
- Song Forward button： Click to play the next song
- speaker LED button : Click to switch 7 speaker light colors in turn, Chose from Default gradient (sync to music), red, blue,
green, purple, yellow, white ；and long press to turn off the light - LED strip button: Click to switch the color of the LED strip (red/white), long press to
adjust the light brightness (default is 100%, long press is 75%, 50%) - Bluetooth button:Click to disconnect the device from other mobile phones and enter the Bluetooth waiting state
- Play/Pause/Hold a call: Click to play/pause when music is playing, short press in Bluetooth mode to hold/hang a call
- Indicator:Blue light in Bluetooth mode; Red light in AUX mode; The indicator is green in USB mode
- Microphone: The function of picking up the voice when making a call
I/O DESCRIPTION
- Battery Power input: Input 12V / 10A
- USB Port: Insert USB to play music, insert USB charging cable can charge mobile phones and
other mobile devices output 5V=1A - AUX IN : 3.5mm audio cable audio source input

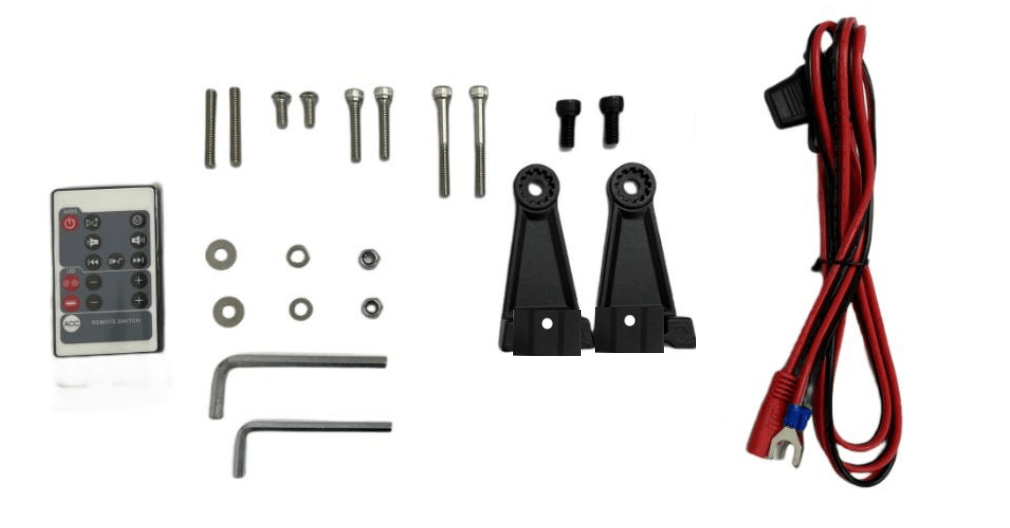

ACCESSORY BOX
- RF Remote Contro
- 6ft master power cable with heavy-duty battery
terminals and an SAE quick disconnect plug - 15-amp fuse holder and fuse
- Powder coated, solid aluminum cast legs
- Mounting hardware
